Beam Alignment Tool (BAT)



spacer spacer spacer
BAT Features

Delivery of multiple laser beams is made quick and consistent through application of the beam alignment tool (BAT) from L-A-Omega.  The BAT quickly coverts a crooked laser beam into a straight-and-centered beam. The angular repeatability is <1 mrad while the angular acceptance angle is up to 5.0 degrees.  The spatial repeatability is less than 5% of the beam diameter while the spatial acceptance aperture is 18 mm in diameter.   The BAT quickly mounts to a kinematic base with excellent repeatability.  It is an essential tool for any optical instrument that requires accurate alignment of laser beams.

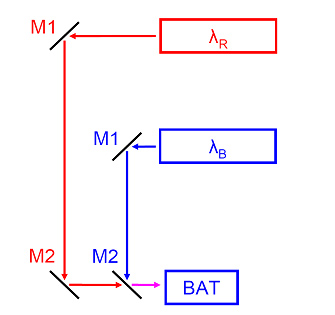

bat features

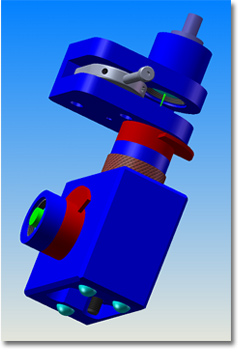

beam alignment tool product view
pdf Download Beam Alignment Tool: Full Documentation (PDF)
